Transformer- heat treatment machine

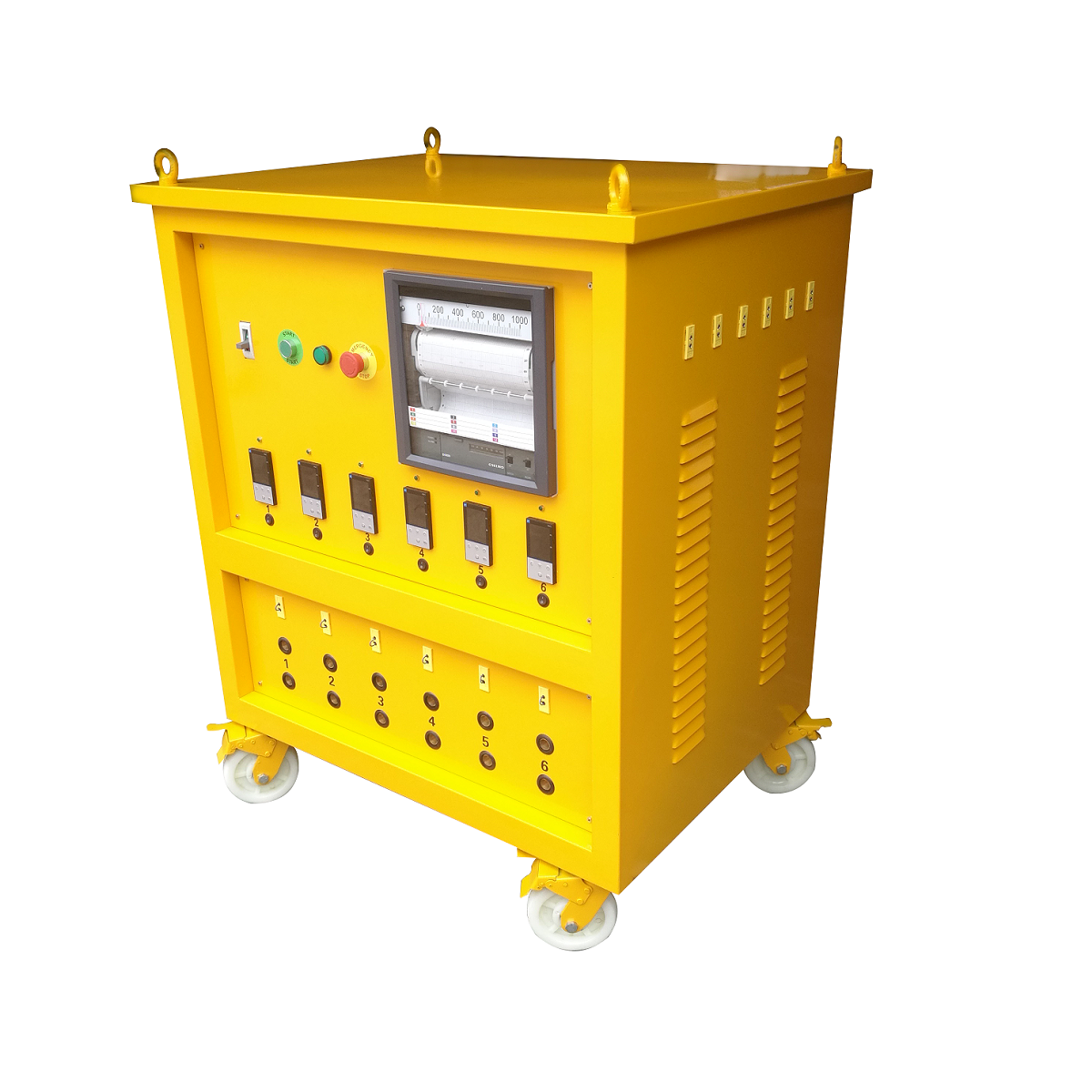

65kva UK type PWHT equipment,post weld heat treatment equipment,PWHT machine,post weld heat treatment machine

65kva UK type PWHT equipment,post weld heat treatment equipment,PWHT machine,post weld heat treatment machine

 Our PWHT equipments are  far infrared heating equipment with PID system.

Their main applications are pipeline heating, pre-welding heating, post-welding heat treatment, stress relief,, annealing,ect.

1. Pre-heating: Straight seam weld, longitudinal, circumferential weld, thick steel plate etc.

2. Post-welding heat treatment: tank, boiler or other metal jobs

3. Heating: mold heating, shipboard, zinc bath, large& irregular metal parts

4. Pipeline heating: pipeline oil, pipeline gas, pipeline water, pipeline petrochemical and other pipeline material

The using fields involved are petrochemical, oil and gas pipelines, aerospace, shipbuilding, steel, Hydropower construction ,

tanks, boilers, vessels, pressure vessels, cylinders, metal structure, spatial structure, railway bridges, electricity water, mine construction,

 vehicle manufacturing, nuclear power, mining, plastics processing, energy saving process, screw barrel industries,ect.


TDWK-D-65kva  6 channels

60V Output Voltage

Japanese CHINO EH3000 recorder

65 kva rated power;

it can take 24 pieces of 2.7 kw 60V heaters working at the same time at most;

There will be 6 temperature control channels,the power of each channel is 10.8kva,which can match 4 piece of 2.7kw 60kw heaters at most.

Input voltage:415V/380V/440V/480V/575 3phase 50Hz/60Hz AC.

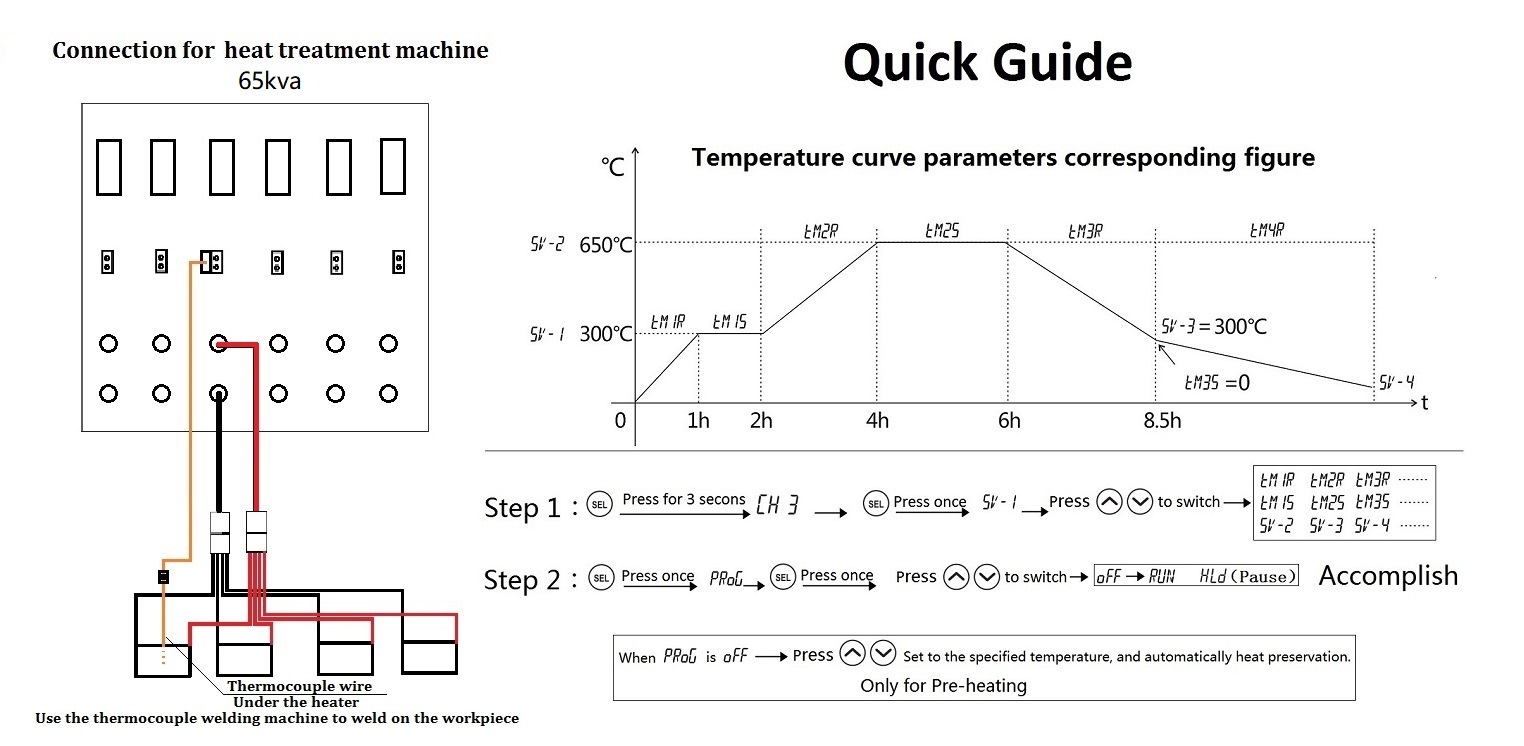

connection 50kva.jpg

65kva 主图 (1).jpg1678756673192707.jpg
