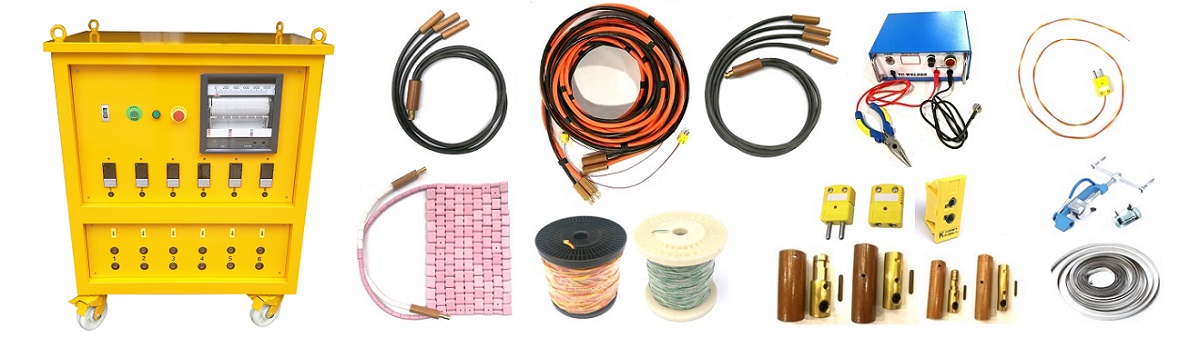

Preheating & heat treatment machine and accessories

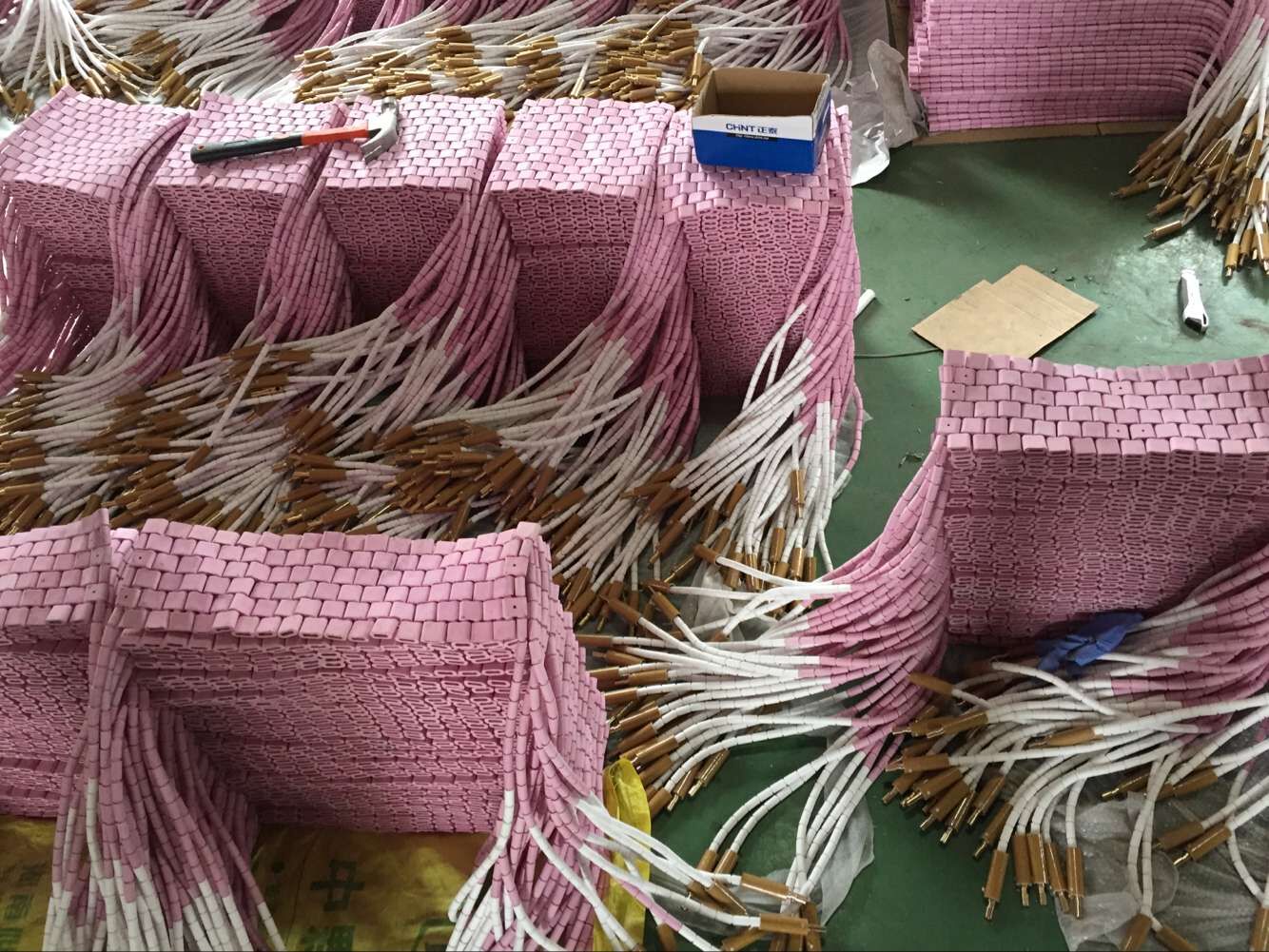

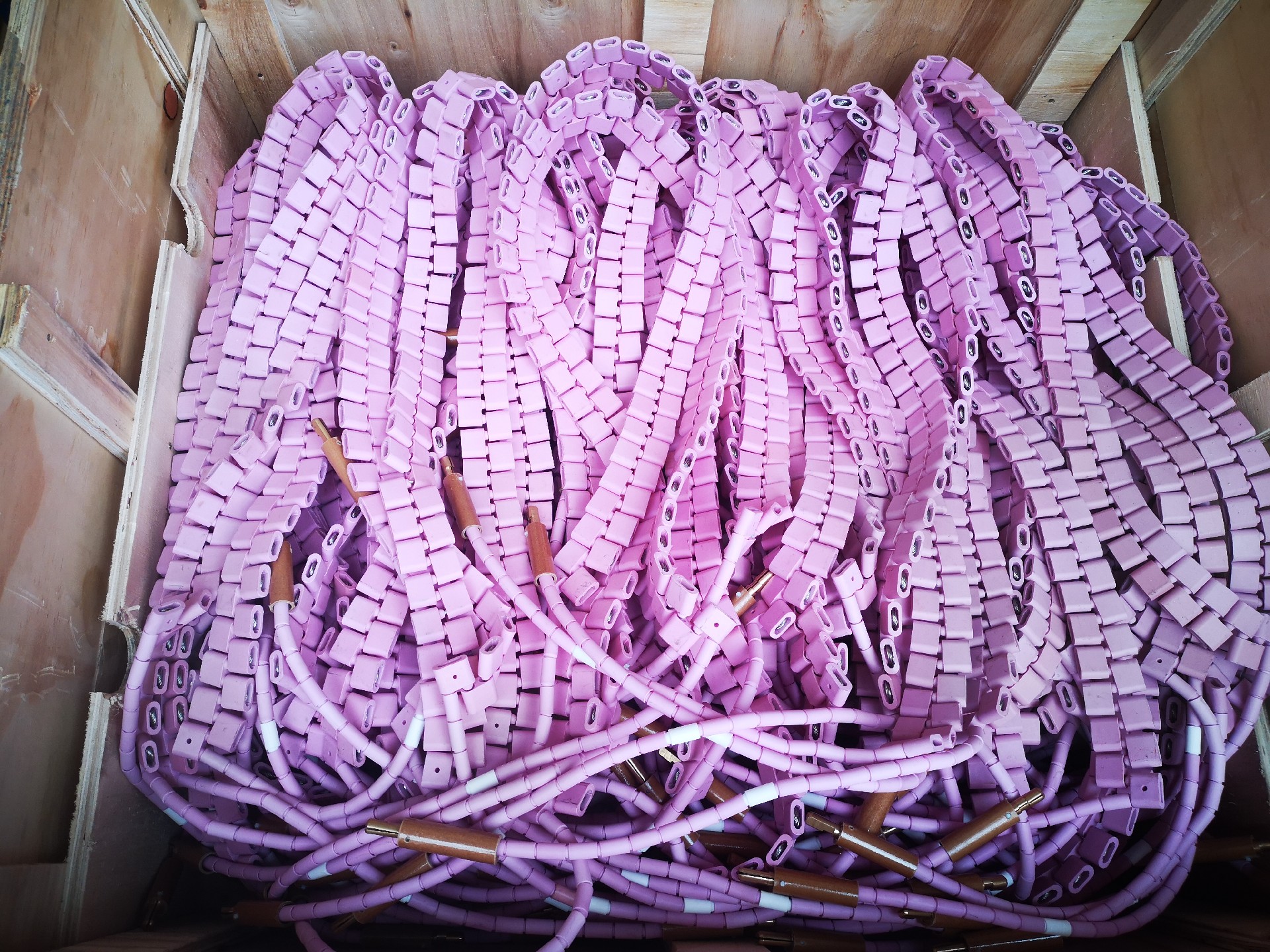

Ceramic Heating Element is manufactured by multi-strand quality 80/20 Nichrome heating wire through passages within interlocking ceramic beads,
complete with two electrically insulated camlock, which is protected from being heated by cold pure nickle wire that connects the heating wire.
The alumina ceramic beads are made of sintered 95% Alumina Ceramics. It enjoys high temperature resistance, excellent insulating property, and
efficient thermal conductivity and heat transfer, which provides FCP heaters with exceptional electrical insulating and thermal condutivity qualities.

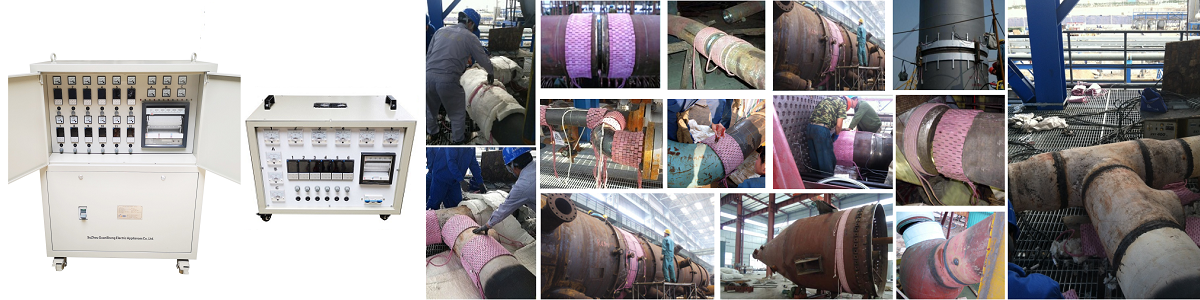

It can be frequently used up to fifty times at ambient of 1050°C. Industry We Serve Offshore/Onshore Oil and Gas Industries, Power Generating Stations,
Refineries, Fabrication and Welding Shops, Ship Building and Repair,, Pulp & Paper Mills… e.t.c. Flexible Ceramic Pad heaters (FCP) are generally available
to two standard volts: 80VAC, and 60VAC and using different connectors among different countries, one choice is Brass Camlock Connector, the other
choice is Welding Cable Plug (System DINSE). The specification is refered to Table below.
60V ceramic pad heater

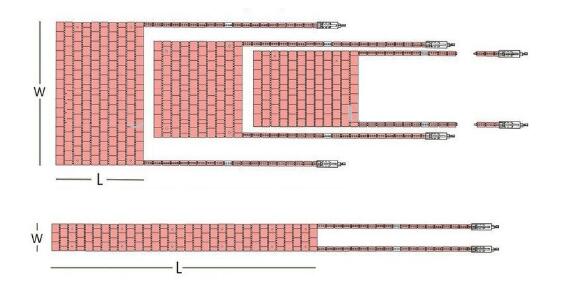

No. | Type | Width*Length(mm) | Rating | Current | Voltage |
1 | CP3-60V | 75 *724 | 2.7kW | 45amp | 60 volt |
2 | CP4-60V | 102 *533 | 2.7kW | 45amp | 60 volt |
3 | CP6-60V | 152 *368 | 2.7kW | 45amp | 60 volt |
4 | CP8-60V | 203 *267 | 2.7kW | 45amp | 60 volt |
5 | CP10-60V | 254*229 | 2.7kW | 45amp | 60 volt |
6 | CP12-60V | 305 *184 | 2.7kW | 45amp | 60 volt |
7 | CP15-60V | 380*146 | 2.7kW | 45amp | 60 volt |
8 | CP18-60V | 457*127 | 2.7kW | 45amp | 60 volt |
8 | CP20-60V | 510*105 | 2.7kW | 45amp | 60 volt |
9 | CP21-60V | 535*102 | 2.7kW | 45amp | 60 volt |
10 | CP24-60V | 610*83 | 2.7kW | 45amp | 60 volt |
11 | CP26-60V | 740*83 | 2.7kW | 45amp | 60 volt |
12 | CP48-60V | 1280*45 | 2.7kW | 45amp | 60 volt |
Constitute: 1.95% Alumina ceramics
2.Heating wire:Cr20Ni80 19*0.55mm
3.Joint location：Pure copper, high temperature resistant joints
4.Cold tail wire：Pure nickel wire
80V ceramic pad heater
No. | Type | Width*Length(mm) | Rating | Current | Voltage |
1 | CP4-80V | 102*737 | 3.6KW | 45amp | 80 volt |
2 | CP6-80V | 152*501 | 3.6KW | 45amp | 80 volt |
3 | CP8-80V | 203*368 | 3.6KW | 45amp | 80 volt |
4 | CP10-80V | 254*294 | 3.6KW | 45amp | 80 volt |
5 | CP12-80V | 305*248 | 3.6KW | 45amp | 80 volt |
6 | CP15-80V | 380*203 | 3.6KW | 45amp | 80 volt |
7 | CP18-80V | 457*165 | 3.6KW | 45amp | 80 volt |
8 | CP21-80V | 535*145 | 3.6KW | 45amp | 80 volt |
9 | CP24-80V | 610*125 | 3.6KW | 45amp | 80 volt |
10 | CP29-80V | 740*100 | 3.6KW | 45amp | 80 volt |
11 | CP33-80V | 840*85 | 3.6KW | 45amp | 80 volt |
12 | CP36-80V | 915*80 | 3.6KW | 45amp | 80 volt |
Constitute: 1.95% Alumina ceramics
2.Heating wire:Cr20Ni80 19*0.55mm
3.Joint location：Pure copper, high temperature resistant joints
4.Cold tail wire：Pure nickel wire
