CN type PWHT equipment,post weld heat treatment equipment,PWHT machine,post weld heat treatment machine

CN type PWHT equipment is widely used in China，In order to meet the requirements of other countries, we customize the input voltage according to different countries.

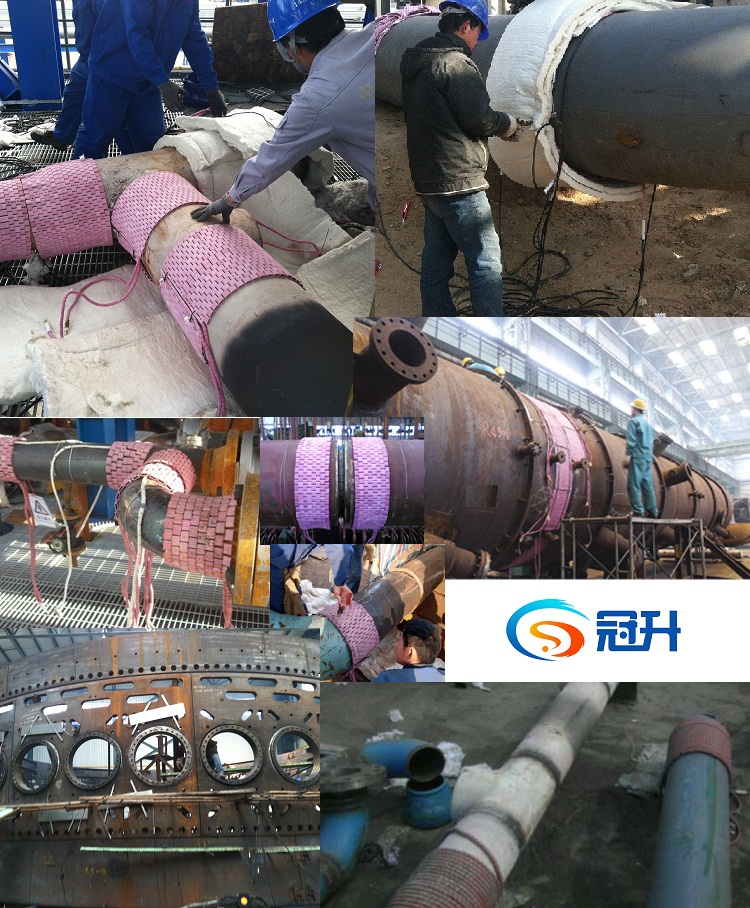

1. Pre-heating: Straight seam weld, longitudinal, circumferential weld, thick steel plate etc.

2. Post-welding heat treatment: tank, boiler or other metal jobs

3. Heating: mold heating, shipboard, zinc bath, large& irregular metal parts

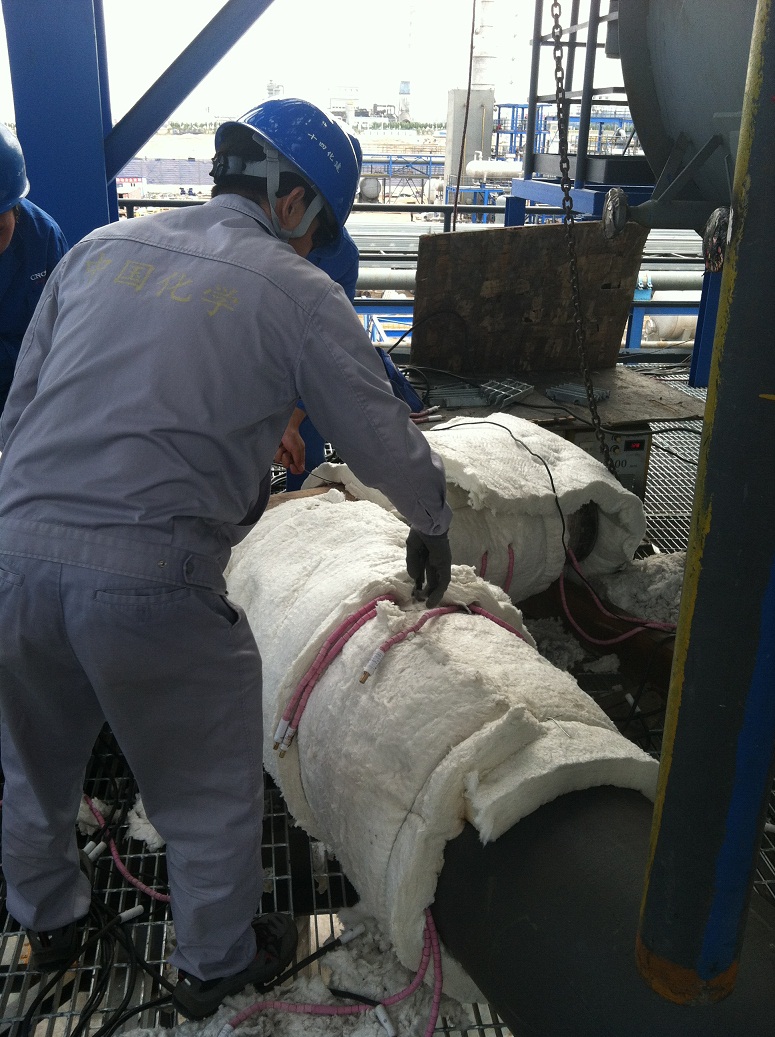

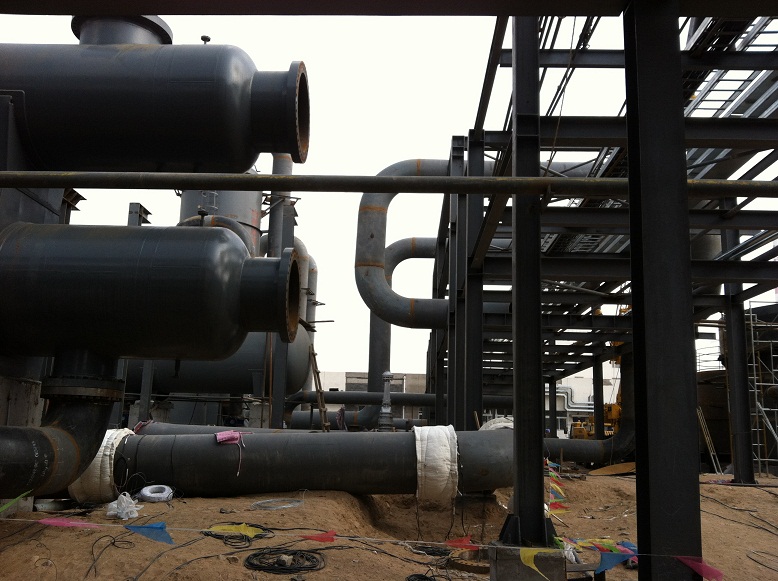

4. Pipeline heating: pipeline oil, pipeline gas, pipeline water, pipeline petrochemical and other pipeline material

The using fields involved are petrochemical, oil and gas pipelines, aerospace, shipbuilding, steel, Hydropower construction ,

tanks, boilers, vessels, pressure vessels, cylinders, metal structure, spatial structure, railway bridges, electricity water, mine construction,

 vehicle manufacturing, nuclear power, mining, plastics processing, energy saving process, screw barrel industries,ect.

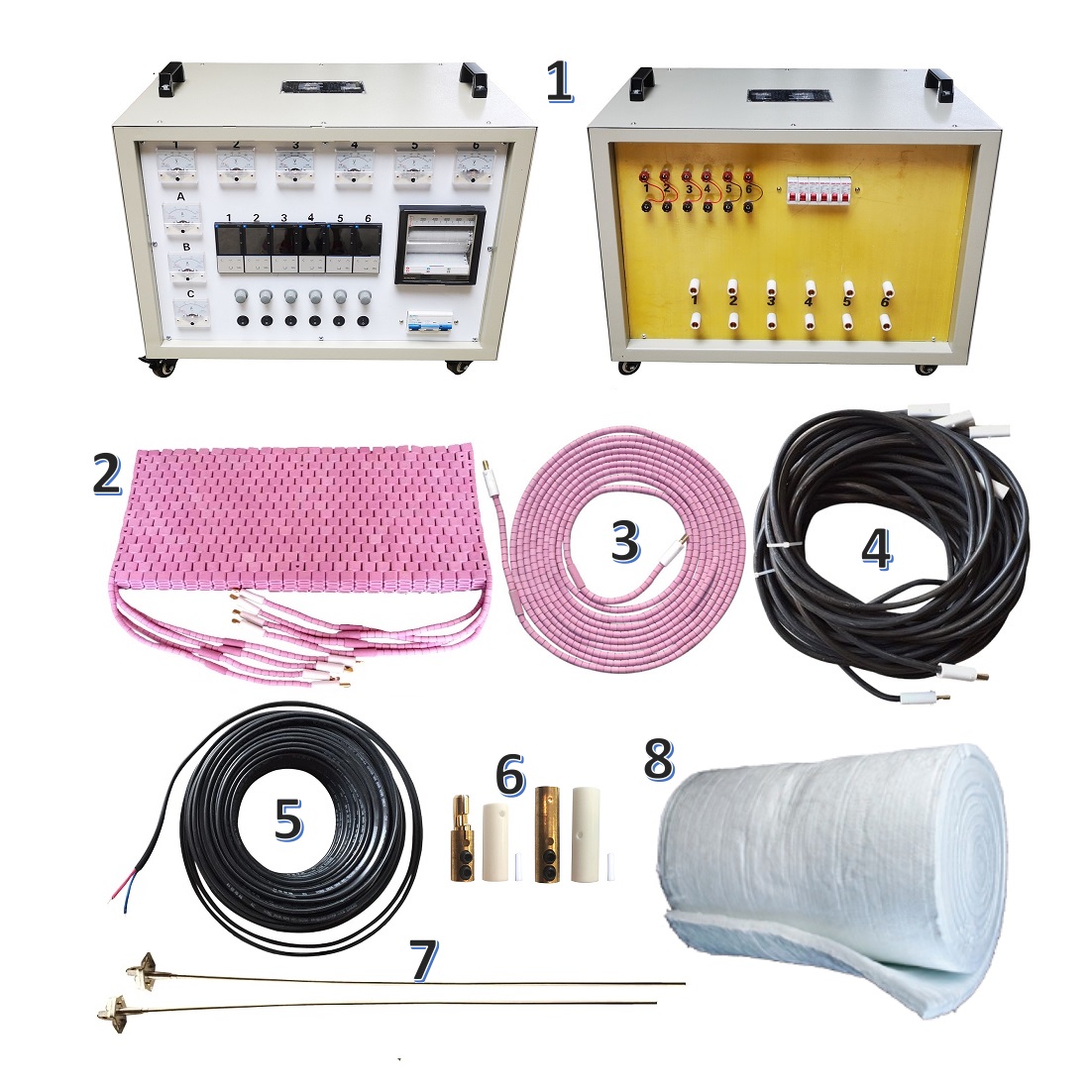

60KW heat treatment machine：

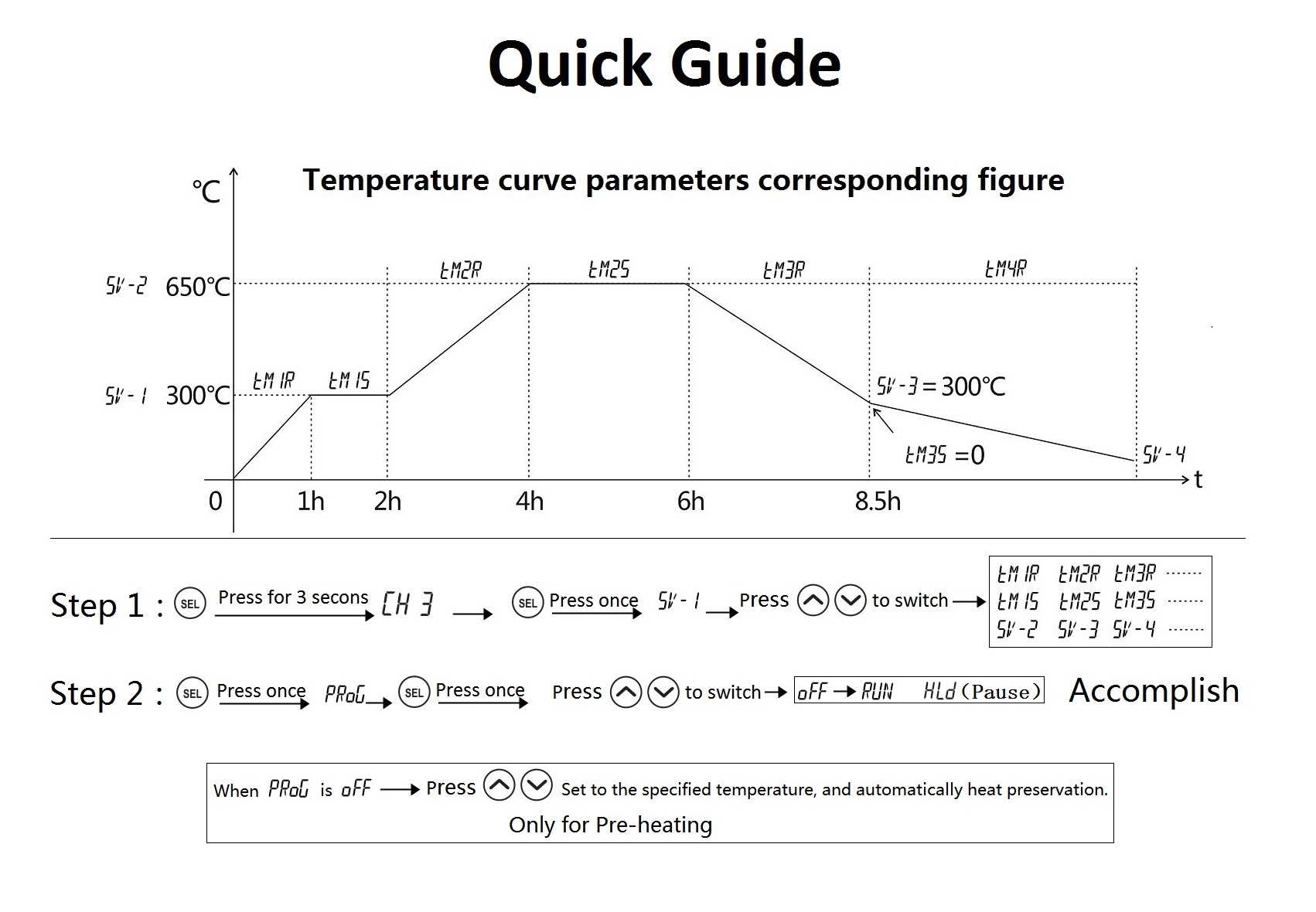

It can control over rates of heating and cooling as well as soak conditions, it has eight sections of setting at most,

0-1000℃ constant temperature；Each circuit may be controlled individually at a set point；

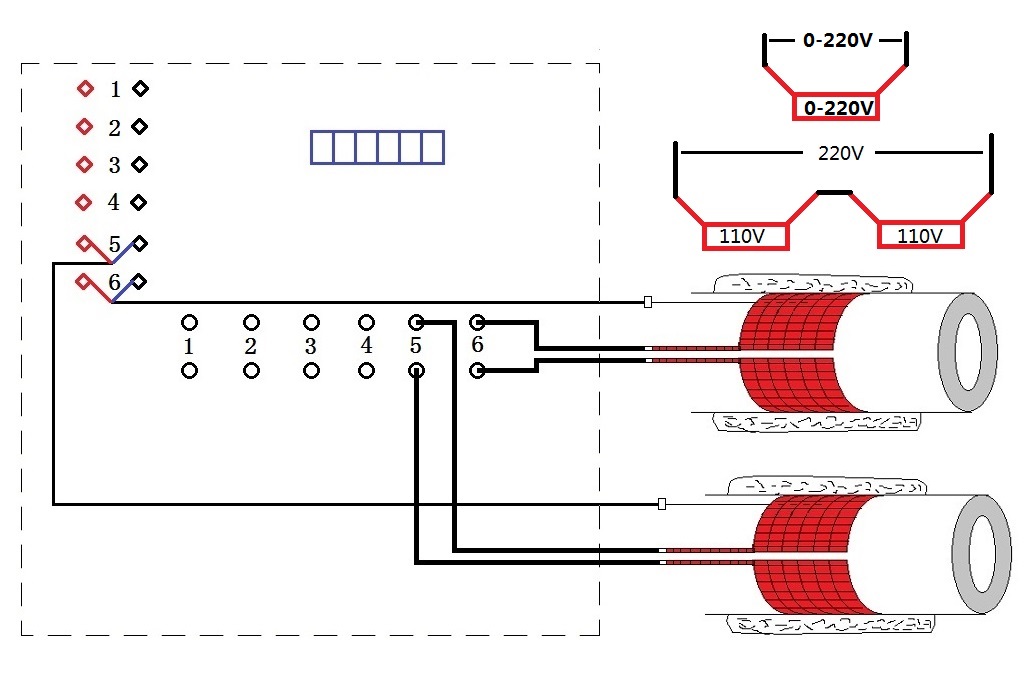

60kw rated power; it can take 6 pieces of 0-10 kw heaters working and it can automatically print 6 temperature curves of different colors at the same time at most（It can handle six welds simultaneously）.

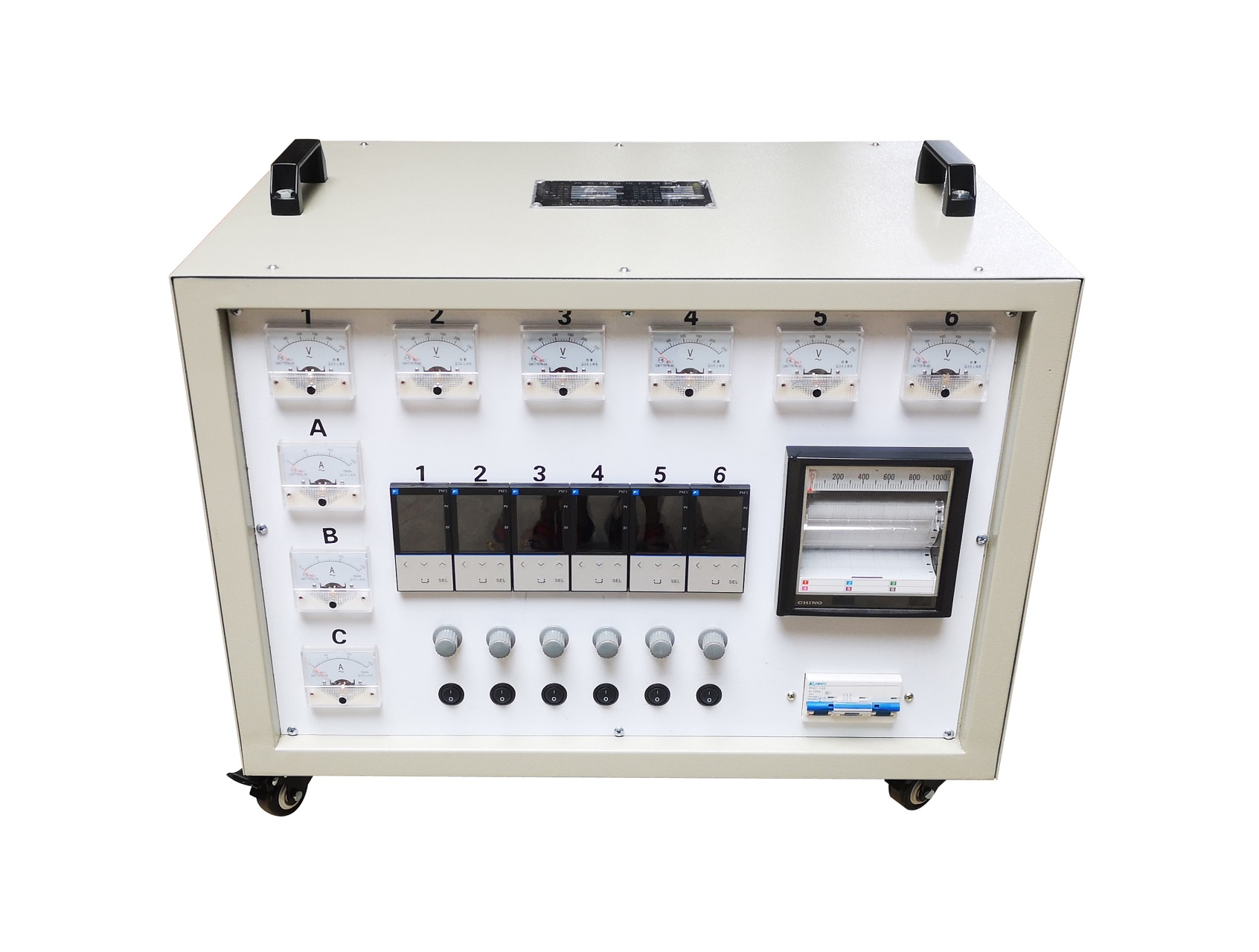

DWK-D-60kw  6 channels

6 points Japanese CHINO EL3000 recorder

0-220V Output Voltage

60kw rated power;

3-phase + N (zero line) three-phase four-wire 440V/400V/415V/380V can be custom-made

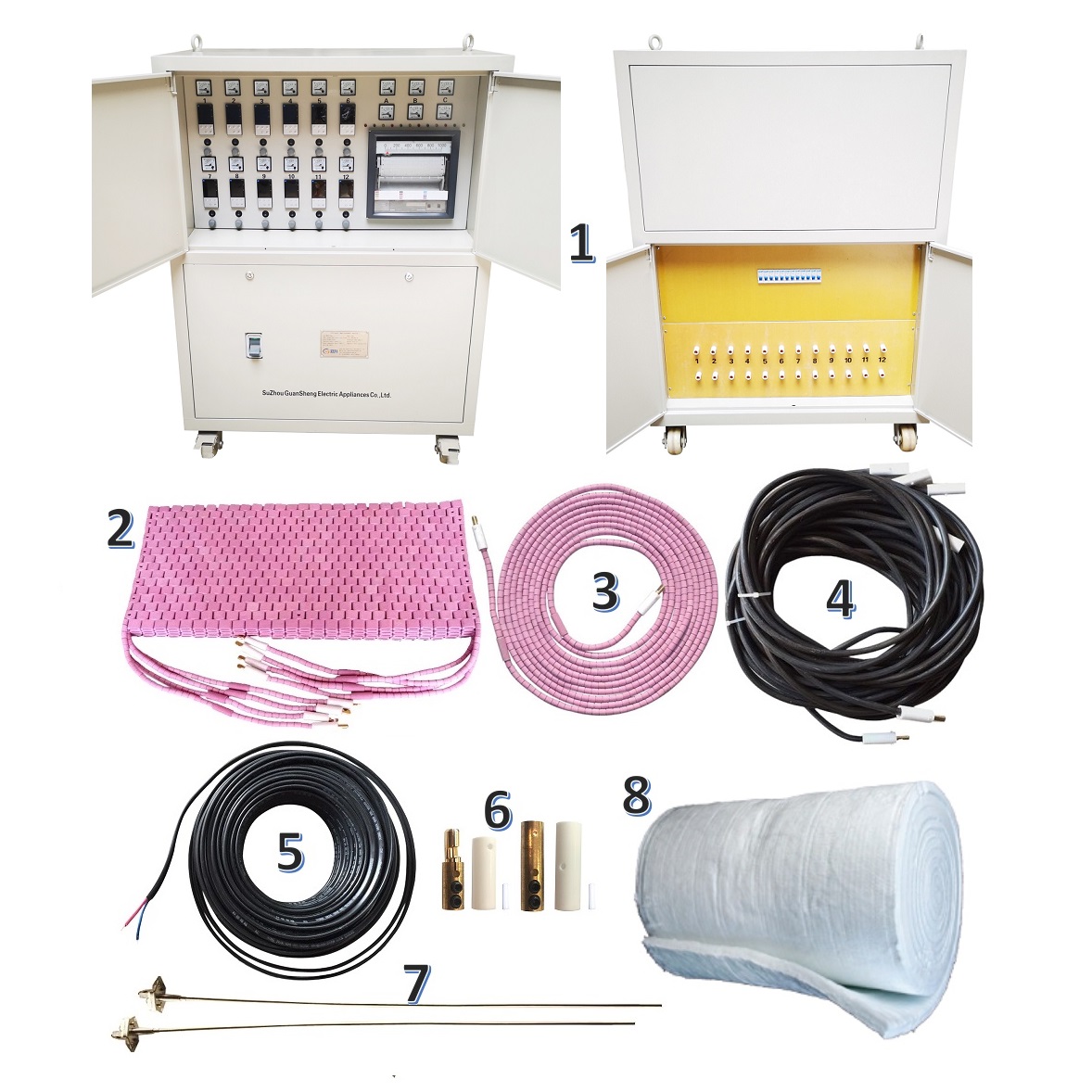

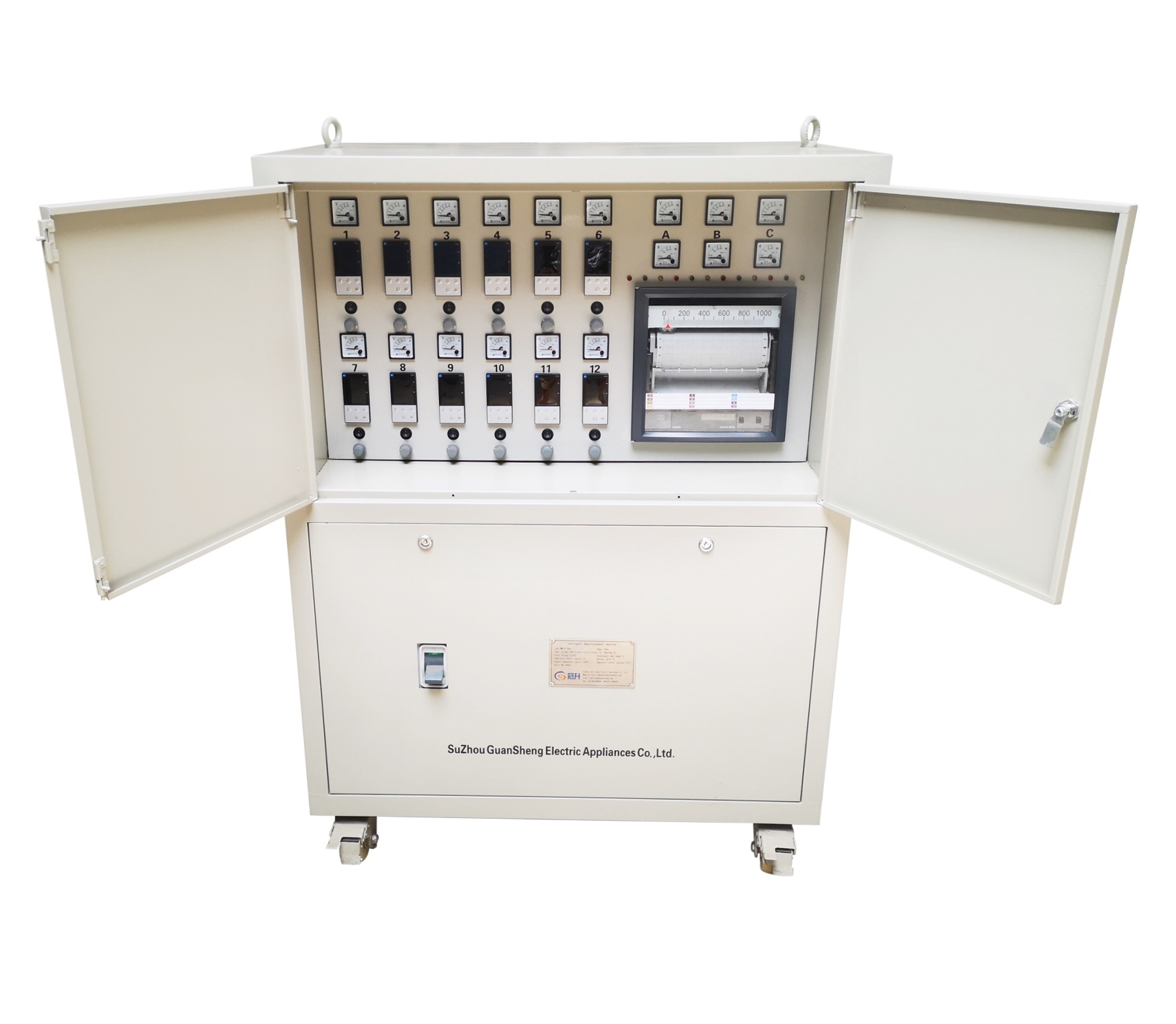

120KW heat treatment machine：

It can control over rates of heating and cooling as well as soak conditions, it has eight sections of setting at most, 0-1000℃ constant temperature；

Each circuit may be controlled individually at a set point；

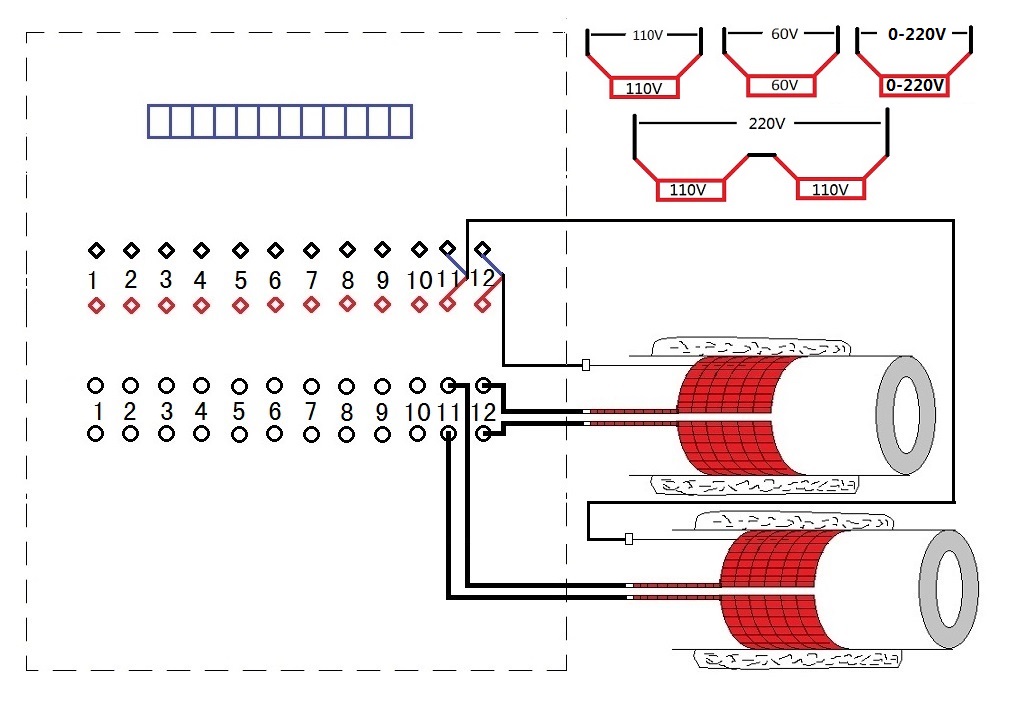

120kw rated power; it can take 12 pieces of 0-10 kw heaters working and it can automatically print 12 temperature curves of different colors at the same time at most

（It can handle six welds simultaneously）.

DWK-D-120kw  12 channels

12 points Japanese CHINO EH3000 recorder

0-220V Output Voltage

120kw rated power;

3-phase + N (zero line) three-phase four-wire 440V/400V/415V/380V can be custom-made

Ceramic heater size table：
