Preheating & heat treatment machine and accessories
Design: Back insulation made of 1" ceramic fiber insulation in Inconel wire mesh, back protection made of stainless steel.
Application range: Circumferential tank welds, longitudinal tank welds, repair points
Application limit: 450°C material temperature

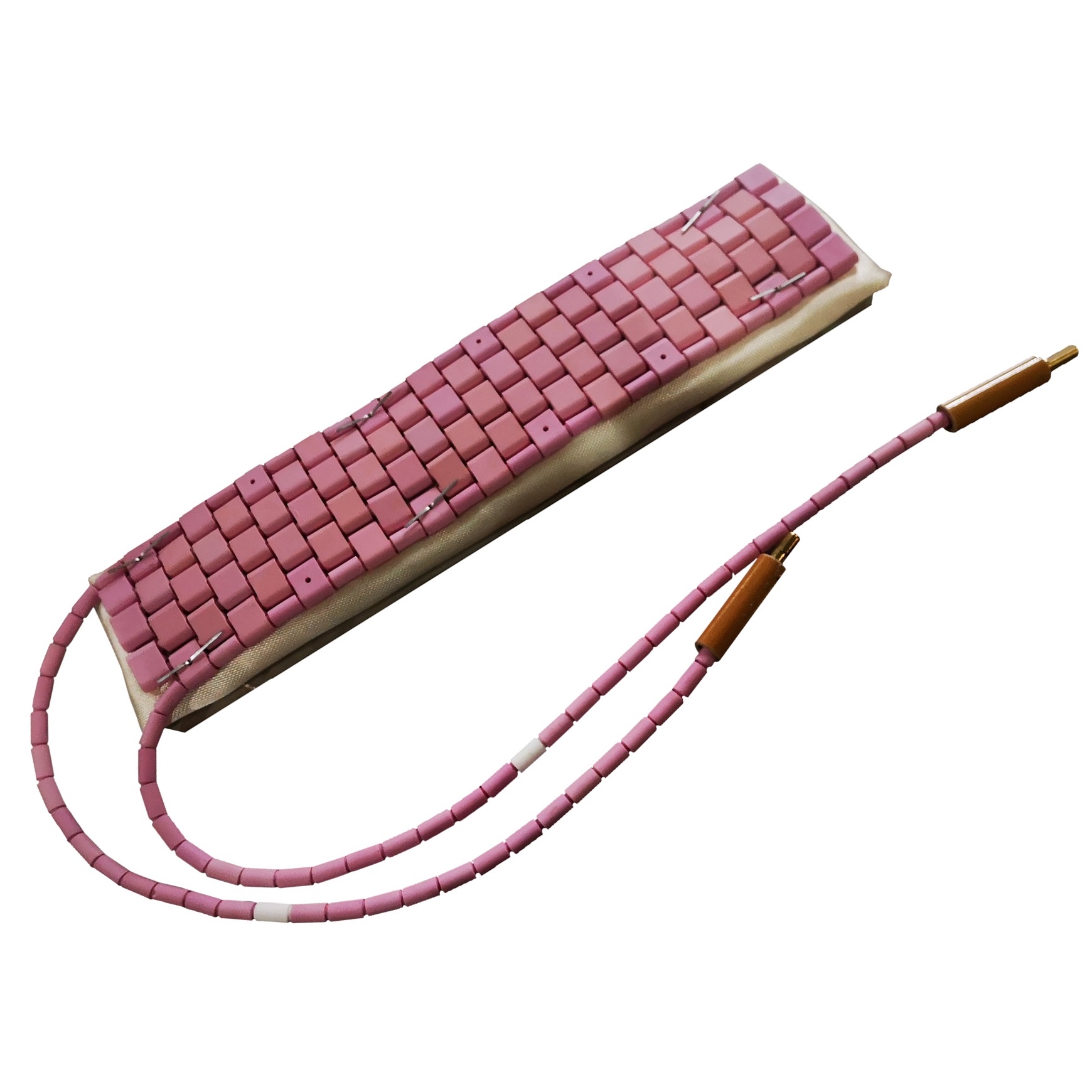

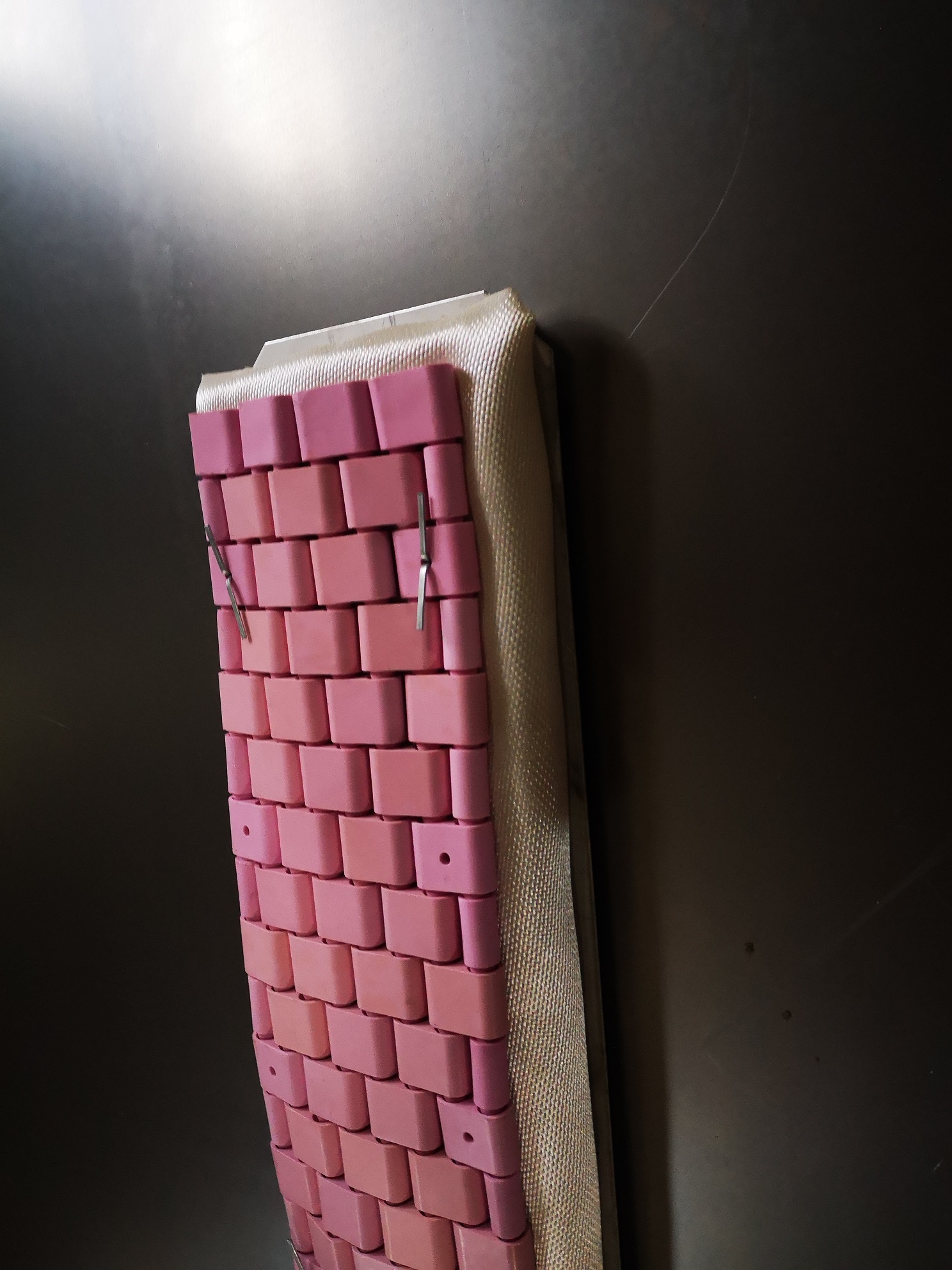

60V Insulated heater,Ceramic pad heater with insulation,Flexible Insulated Preheater
| No. | Type | Width*Length(mm) | Rating | Current | Voltage |
| 1 | CP3-60V | 80 *800 | 2.7kW | 45amp | 60 volt |
| 2 | CP4-60V | 110 *600 | 2.7kW | 45amp | 60 volt |
| 3 | CP6-60V | 160 *400 | 2.7kW | 45amp | 60 volt |
| 4 | CP8-60V | 210 *300 | 2.7kW | 45amp | 60 volt |
| 5 | CP10-60V | 260*280 | 2.7kW | 45amp | 60 volt |
| 6 | CP12-60V | 310 *240 | 2.7kW | 45amp | 60 volt |
| No. | Type | Width*Length(mm) | Rating | Current | Voltage |
| 1 | CP4-80V | 102*1020 | 3.6KW | 45amp | 80 volt |
| 2 | CP6-80V | 160*520 | 3.6KW | 45amp | 80 volt |
| 3 | CP8-80V | 210*380 | 3.6KW | 45amp | 80 volt |
| 4 | CP10-80V | 260*340 | 3.6KW | 45amp | 80 volt |
| 5 | CP12-80V | 310*280 | 3.6KW | 45amp | 80 volt |
| 6 | CP15-80V | 380*250 | 3.6KW | 45amp | 80 volt |
